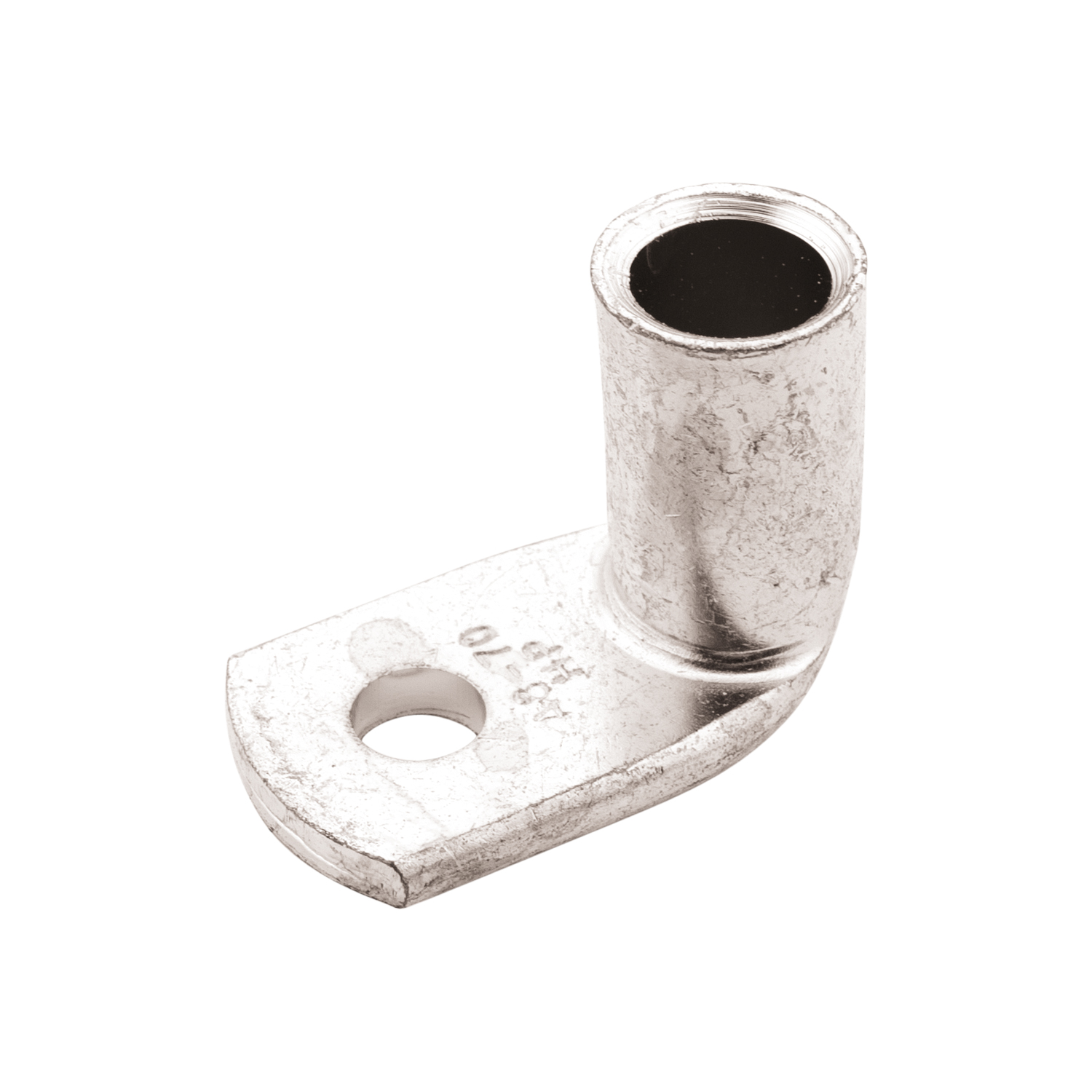

Tubular Cable Lug, standard type 90° angle A 8 - 70 50 pcs.

Tubular Cable Lug, standard type 90° angle A 8 - 70 50 pcs.

Art.no.: 02761

Please log in to see prices!

Weight: 2.5 kg

Tubular Cable Lug, standard type 90° angle A 8 - 70 50 pcs.

normal version, 90° angled
material: E-Cu tube
surface: tin-plated

A [mm]: 21
Nominal size [mm]: A 8 - 70
Nominal cross section [mm²]: 70
b [mm]: 24
d1 [mm]: 12
s [mm]: 2.25
d2 [mm]: 8.4
l [mm]: 31
Weight [kg/1000 pcs.]: 50.8
Manufacturer declaration: Download
