Tubular Cable Lug, standard type 90° angle A 16 - 95 50 pcs.

Tubular Cable Lug, standard type 90° angle A 16 - 95 50 pcs.

Art.no.: 02773

Please log in to see prices!

Weight: 3.05 kg

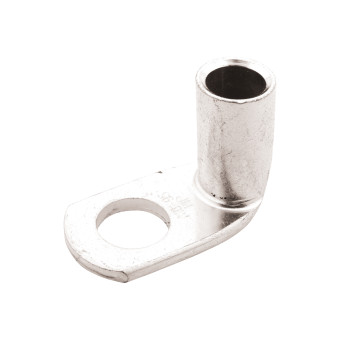

Tubular Cable Lug, standard type 90° angle A 16 - 95 50 pcs.

normal version, 90° angled
material: E-Cu tube
surface: tin-plated

A [mm]: 24
Nominal size [mm]: A 16 - 95
Nominal cross section [mm²]: 95
b [mm]: 28
d1 [mm]: 13.5
s [mm]: 2.25
d2 [mm]: 17
l [mm]: 35
Weight [kg/1000 pcs.]: 61.7
Manufacturer declaration: Download
