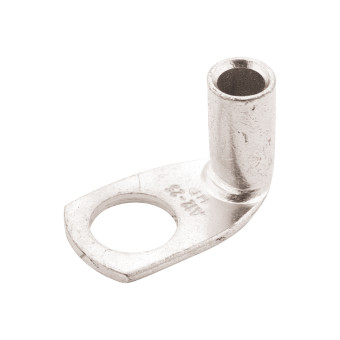

Tubular Cable Lug, standard type 90° angle A 12 - 25 250 pcs.

Tubular Cable Lug, standard type 90° angle A 12 - 25 250 pcs.

Art.no.: 02734

Please log in to see prices!

Weight: 3.75 kg

Tubular Cable Lug, standard type 90° angle A 12 - 25 250 pcs.

normal version, 90° angled
material: E-Cu tube
surface: tin-plated

A [mm]: 16
Nominal cross section [mm²]: 25
Nominal size [mm]: A 12 - 25
b [mm]: 19
d1 [mm]: 6.9
s [mm]: 1.50
d2 [mm]: 13
l [mm]: 21
Weight [kg/1000 pcs.]: 15.5
Manufacturer declaration: Download
