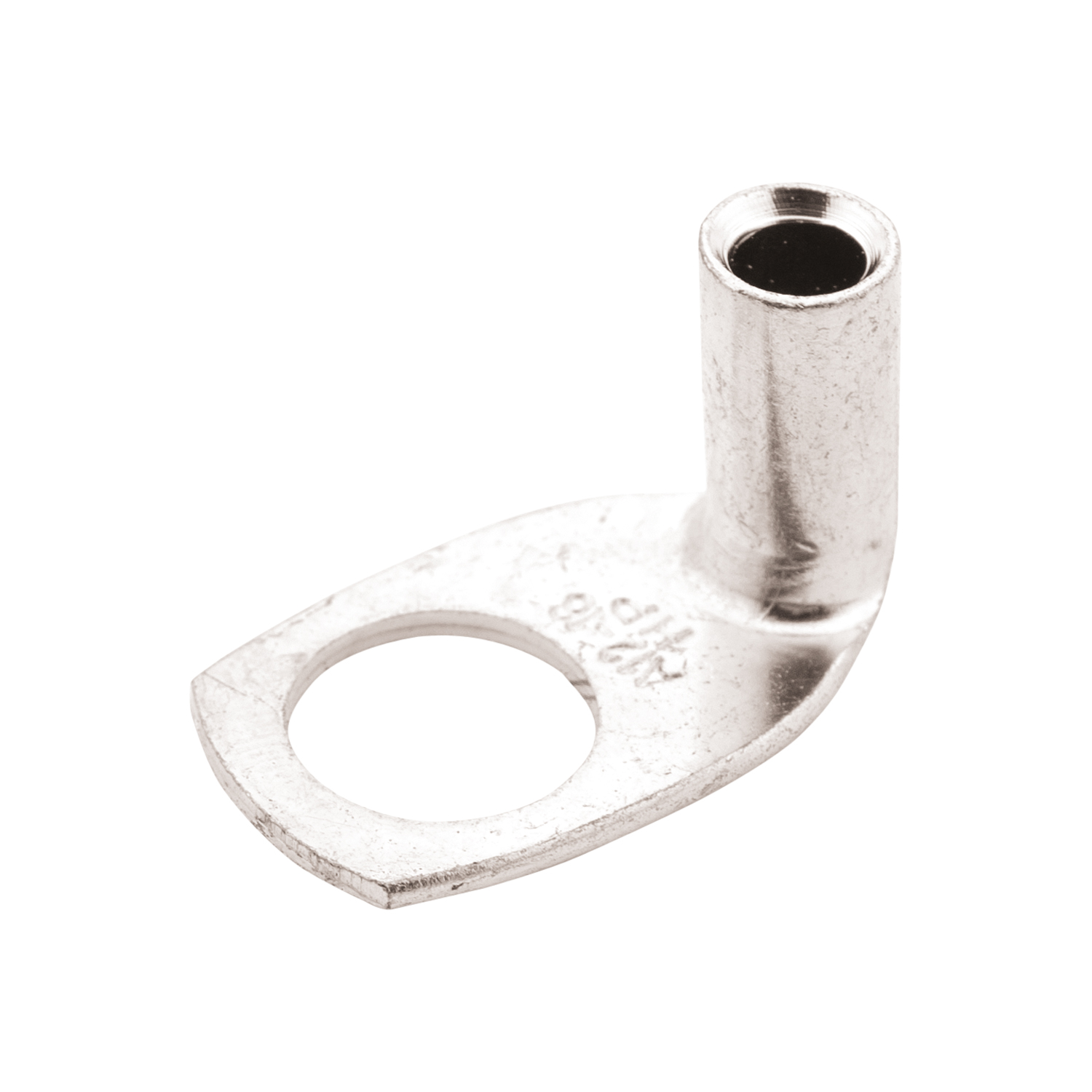

Tubular Cable Lug, standard type 90° angle A 12 - 16 300 pcs.

Tubular Cable Lug, standard type 90° angle A 12 - 16 300 pcs.

Art.no.: 02724

Please log in to see prices!

Weight: 3.6 kg

Tubular Cable Lug, standard type 90° angle A 12 - 16 300 pcs.

normal version, 90° angled
material: E-Cu tube
surface: tin-plated

A [mm]: 14
Nominal size [mm]: A 12 - 16
Nominal cross section [mm²]: 16
b [mm]: 19
s [mm]: 1.5
d1 [mm]: 5.5
d2 [mm]: 13
l [mm]: 20
Weight [kg/1000 pcs.]: 12
Manufacturer declaration: Download
