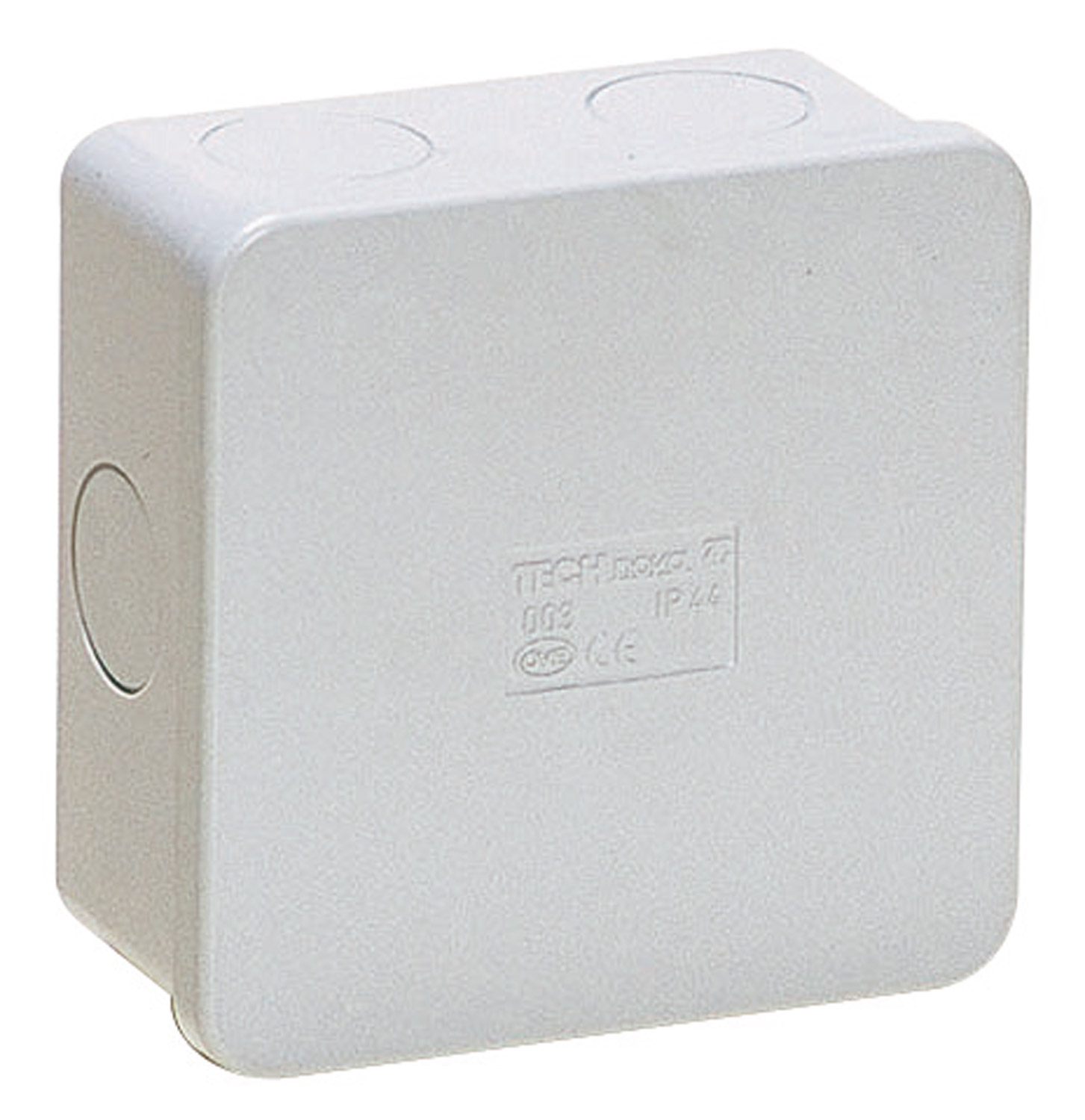

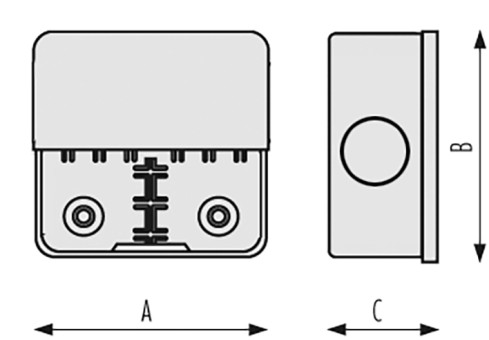

HIL-BOX® enclosure systemSame type as 55000 - 55020, but without universal entry seals, made with knock outs, 80 x 80 x 40 mm

HIL-BOX® enclosure systemSame type as 55000 - 55020, but without universal entry seals, made with knock outs, 80 x 80 x 40 mm

Shock resistant enclosure including universal entry seals with different stepped diameters. Fast locking press-on-cover allows maximum and flexible use of inner part.

• protection spec.: IP 44 acc. DIN EN 60529
• material: base and lid ABS (UV resistant), entry seals PVC
• temperature resistance: up to max. 70 °C according to DIN EN 60695-10-2
• installation temperature: -15 °C up to +60 °C according to DIN EN 60670
• flame protection: 650 °C acc to DIN EN 60695-2-11

Further information:

• Article 55030 is without universal entry seals, made with knockouts.
