Female Push on Terminal, tin-plated, > 1 - 2,5 1000 pcs.

Female Push on Terminal, tin-plated, > 1 - 2,5 1000 pcs.

Art.no.: 45634.123.211

Packaging type:

Please log in to see prices!

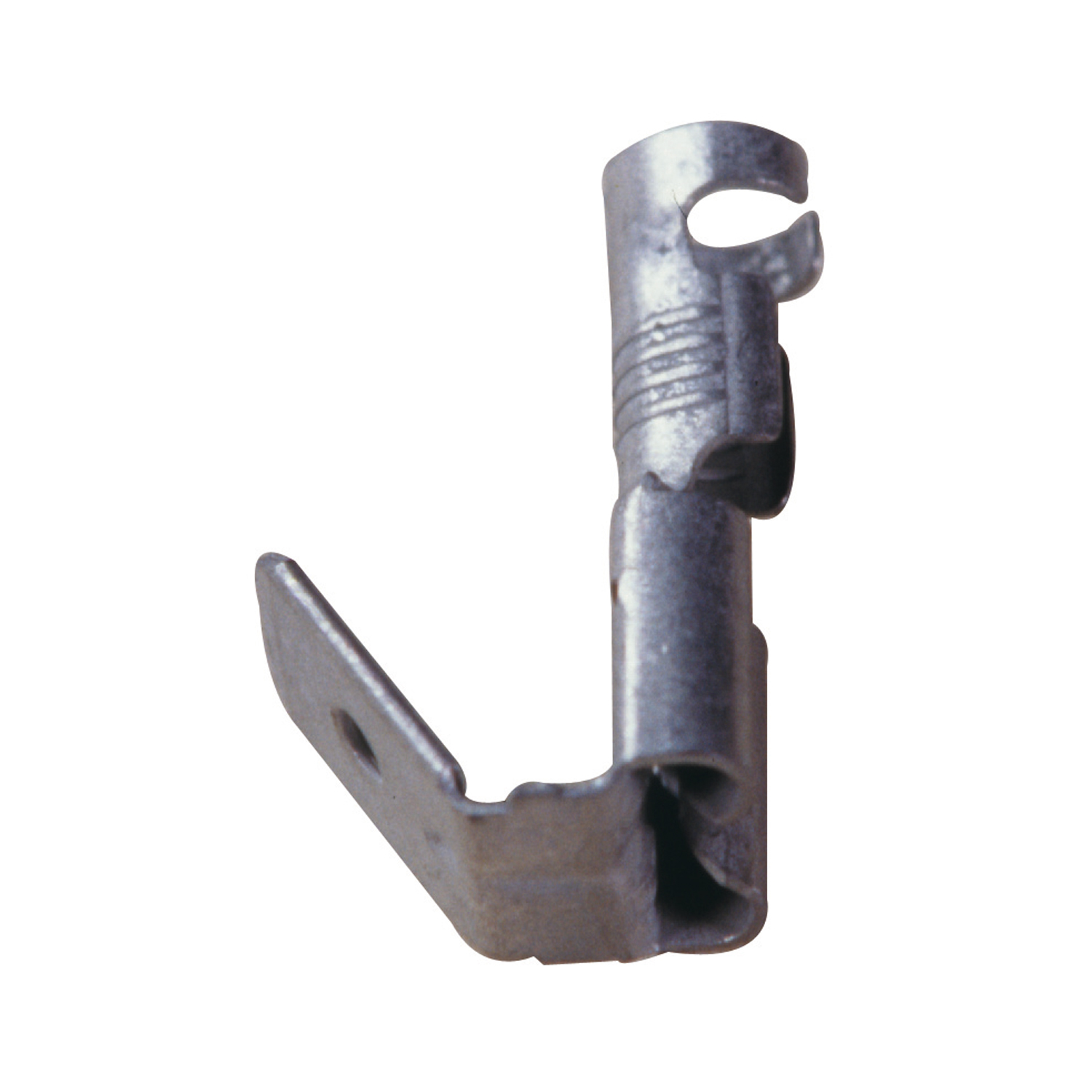

Female Push on Terminal, tin-plated, > 1 - 2,5 1000 pcs.

  • non insulated, piggyback
  • acc. to dIN 46345 and similar
  • material: brass
  • surface: brass bare (MS) or tin-plated (VZ)
Nominal cross section [mm²]
> 1 - 2.5
Design [mm]
B
Terminal Width [mm]
6.3
Terminal Thickness [mm]
0.8
Material
brass

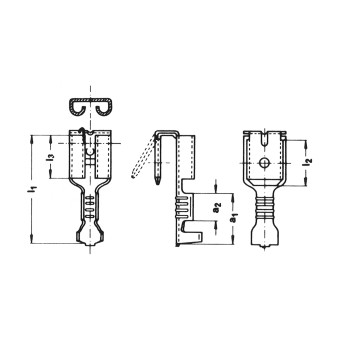

l1 [mm]
19.2
l3 [mm]
7.5
l2 [mm]
8
a1 [mm]
8.5
a2 [mm]
4.5
Mat. Thickness [mm]
0.38
Weight [kg/1000 pcs.]
1.14
Manufacturer declaration
Download
