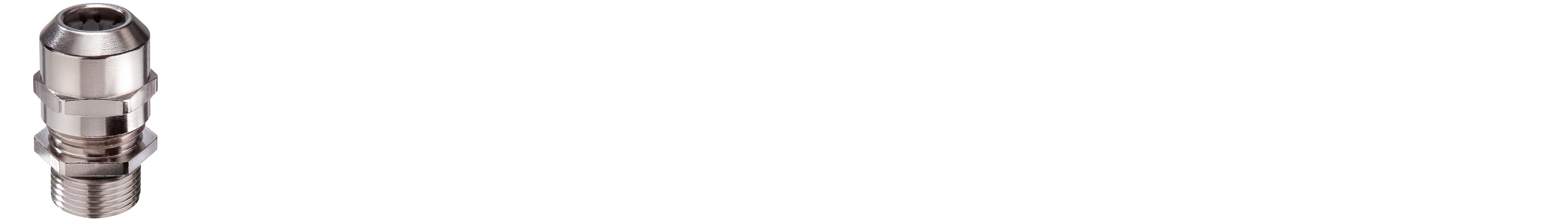

IP68 brass cable gland
Product description:
- with stress relief, with hexagonal plug
- material: brass, nickel-plated
- protection spec.: IP 68 up to 5 bar (30 min.) acc. EN 60529
- temperature resistance: -40 °C up to +100 °C
- UL
- including pre-mounted EPDM sealing ring
| Artikel no | Thread (AG) | H [mm] | GL [mm] | Key size [mm] | min. - max. cable diameter [mm] | Quantity |
|---|---|---|---|---|---|---|
| 51630 L | M 12 x 1,5 | 30 - 37 | 12 | 16 | 3 - 7 | |
| 51631 L | M 16 x 1,5 | 33 - 41 | 12 | 20 | 4.5 - 10 | |
| 51632 L | M 20 x 1,5 | 35 - 43 | 12 | 24 | 6 - 13 | |
| 51633 L | M 25 x 1,5 | 38 - 47 | 12 | 29 | 9 - 17 | |
| 51634 L | M 32 x 1,5 | 43 - 51 | 15 | 36 | 13 - 21 | |
| 51635 L | M 40 x 1,5 | 51 - 62 | 15 | 46 | 16 - 28 | |
| 51636 L | M 50 x 1,5 | 57 - 68 | 15 | 55 | 21 - 35 | |
| 51637 L | M 63 x 1,5 | 61 - 72 | 15 | 68 | 34 - 48 |
