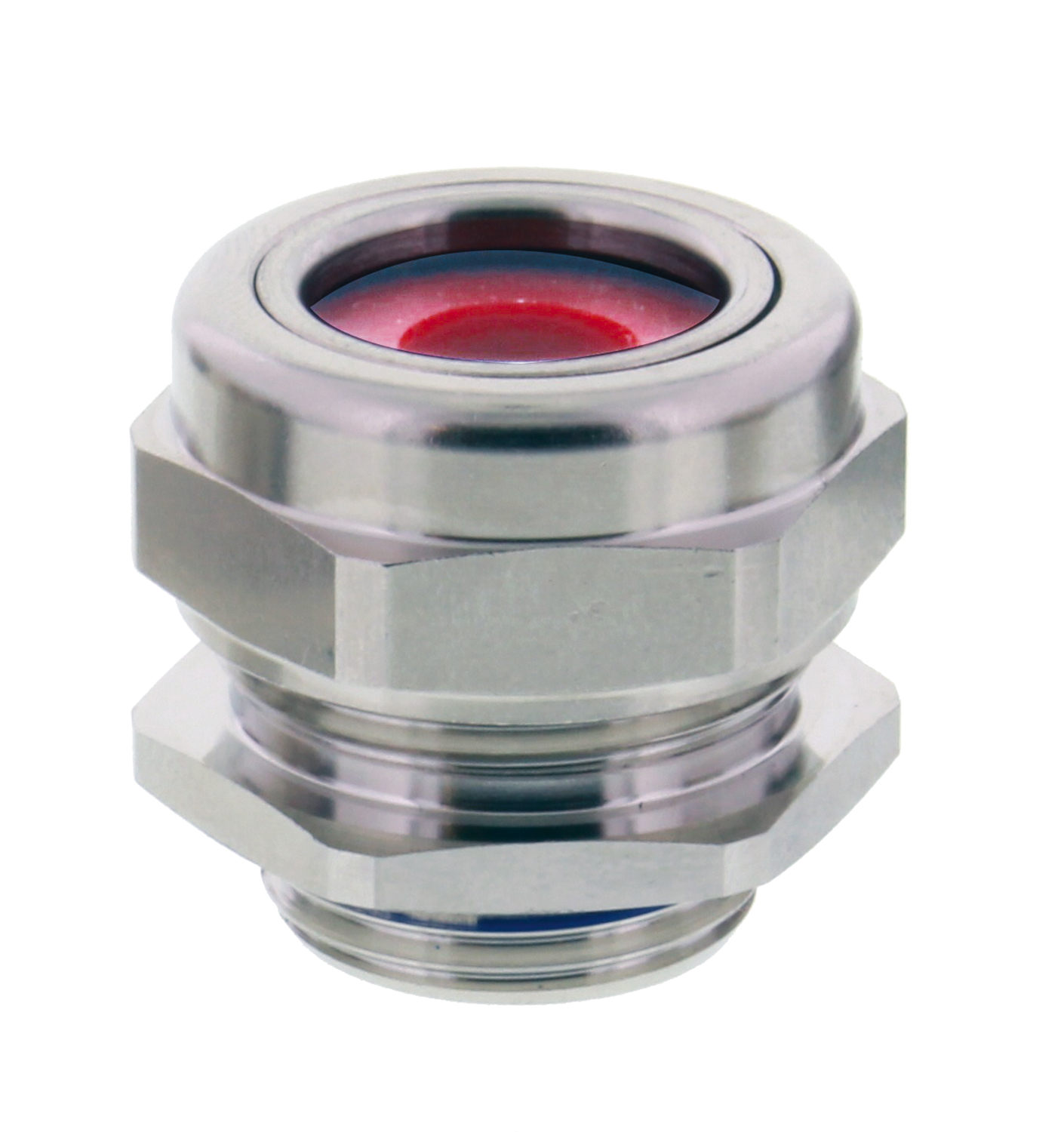

ShotGland – compression gland, LT type (low temperature), 3 - 4 mm, M 8 x 1,25

ShotGland – compression gland, LT type (low temperature), 3 - 4 mm, M 8 x 1,25

Art.no.: 50850
50 piece
Please log in to see prices!
Weight: 0.351 kg

ShotGland – compression gland, LT type (low temperature), 3 - 4 mm, M 8 x 1,25

  • designed especially for the industrial usage where extremely hot or very cold ambient termperatures prevail.
  • minimal installation height
  • material: brass nickel-plated
  • material gasket: silicone
  • protection spec.: IP68 (5 bar 30 min)
  • temperature resistance: -60 °C up to +180 °C
H [mm]
15 - 18.5
Key size [mm]
11
min. - max. cable diameter [mm]
3 - 4
Material
brass nickel-plated
Thread (M)
M 8 x 1,25
L [mm]
5
E [mm]
12
D [mm]
8
Manufacturer declaration
Download
