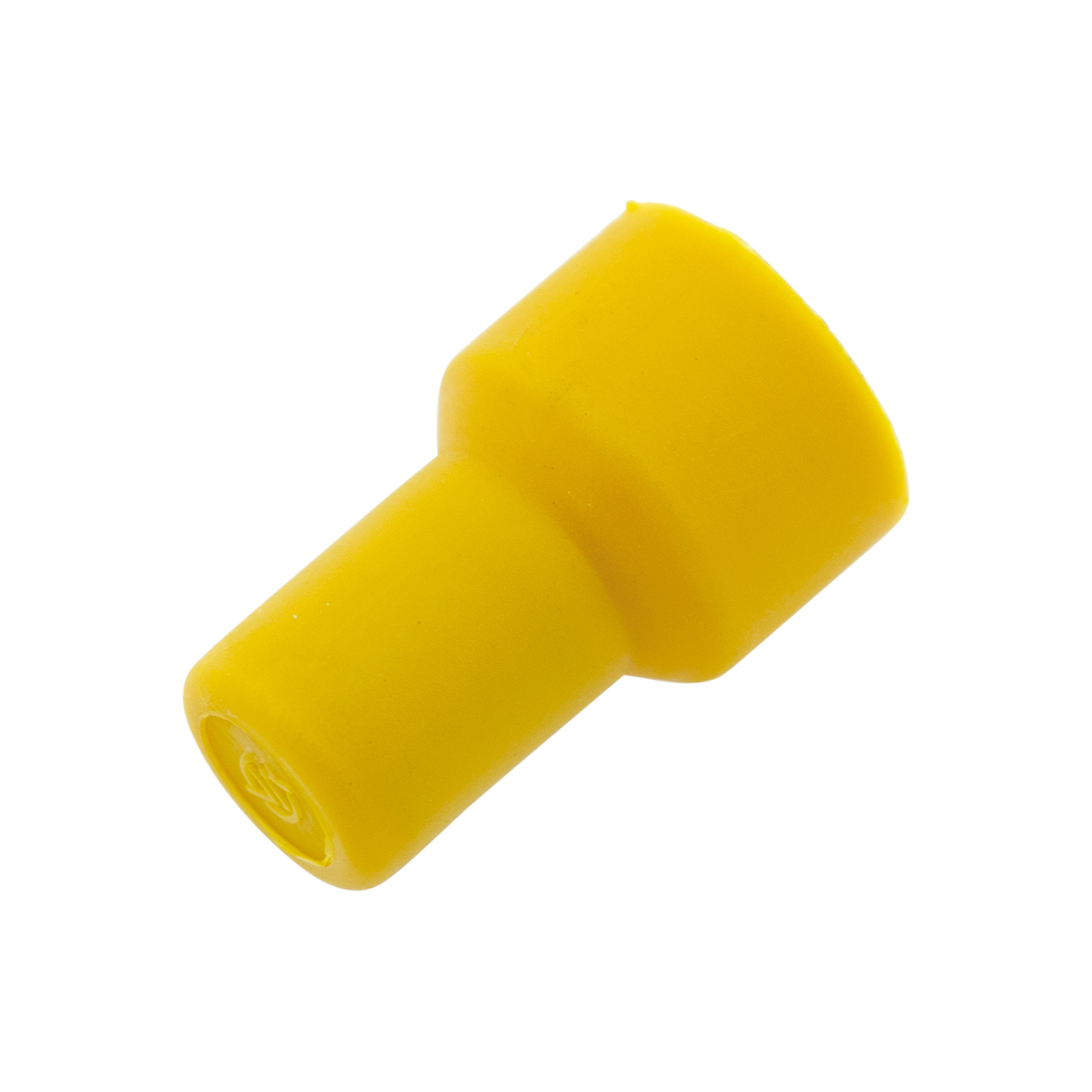

HIL-QUICK® Close End Terminal, insulated, Polyamide, 2,5 - 6,0, 18 mm long

HIL-QUICK® Close End Terminal, insulated, Polyamide, 2,5 - 6,0, 18 mm long

Art.no.: 10725

Packaging type:

Please log in to see prices!
Weight: 0.6 kg

HIL-QUICK® Close End Terminal, insulated, Polyamide, 2,5 - 6,0, 18 mm long

  • insulation: polyamide
  • termparature range: -40 °C up to +105 °C
  • zero halogen
Nominal cross section [mm²]
> 2.5 - 6

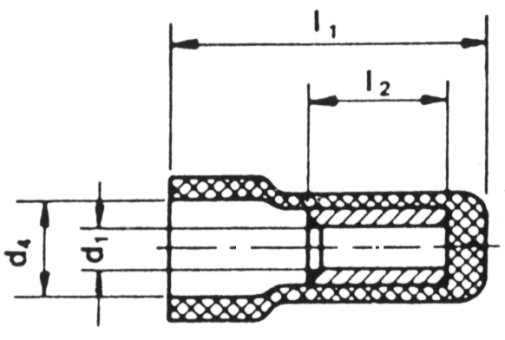

d1 [mm]
3.6
d4 [mm]
9
l1 [mm]
18
l2 [mm]
7
Weight [kg/1000 pcs.]
0.45
Colour
yellow
Insulation
polyamide
Manufacturer declaration
Download
