Male Push on Terminals to solder, D 6,3 - 0,8 1000 pcs.

Male Push on Terminals to solder, D 6,3 - 0,8 1000 pcs.

Art.no.: 17128.123.211

Packaging type:

Please log in to see prices!
Weight: 0.84 kg

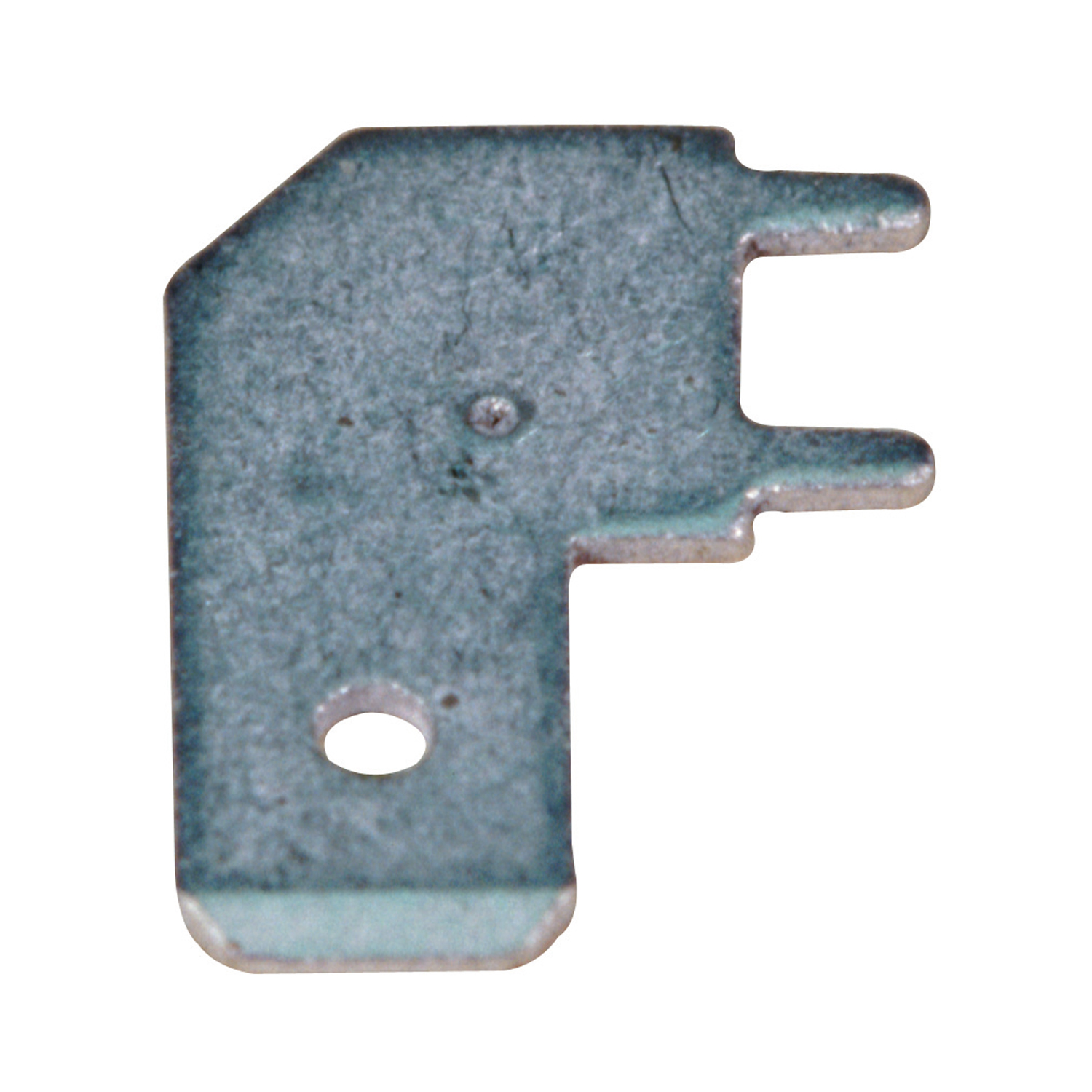

Male Push on Terminals to solder, D 6,3 - 0,8 1000 pcs.

  • non insulated
  • for soldering into printed circuits
  • dimension acc. to DIN 46244
  • material: brass
  • surface: fire-tinned (VZ)

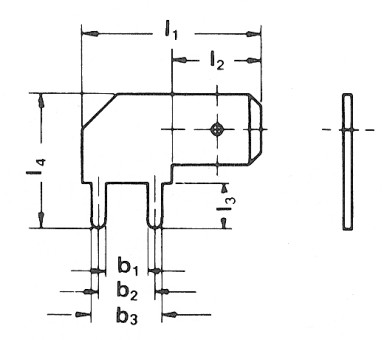

Design [mm]
D
Terminal Width [mm]
6.3
Terminal Thickness [mm]
0.8
Material
brass
l1 [mm]
16.0
l2 [mm]
8.0
l3 [mm]
3
b2 [mm]
5
l4 [mm]
12.0
b1 [mm]
3.8
b3 [mm]
6.2
Mat. Thickness [mm]
0.8
Weight [kg/1000 pcs.]
0.84
Manufacturer declaration
Download
