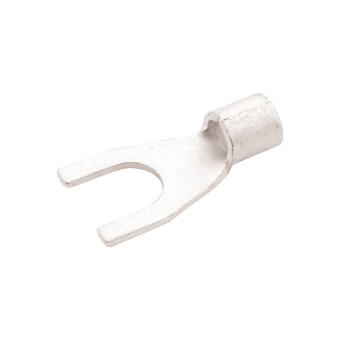

Solderless Terminal spadetype, tin-plated C 8 - 6 100 pcs.

Solderless Terminal spadetype, tin-plated C 8 - 6 100 pcs.

Art.no.: K 01223

Please log in to see prices!

Weight: 0.22 kg

Solderless Terminal spadetype, tin-plated C 8 - 6 100 pcs.

corresponding dimensions in conductor connection area 6mm² acc. to DIN 46234
material: E-Cu
surface: tin-plated

A [mm]: 6
Nominal cross section [mm²]: > 2.5 - 6
Nominal size [DIN]: C - 8 - 6
b [mm]: 14
s [mm]: 1
d1 [mm]: 3.6
d2 [mm]: 8.4
Material: E - Cu
l [mm]: 19
Weight [kg/1000 pcs.]: 2.2
Manufacturer declaration: Download
