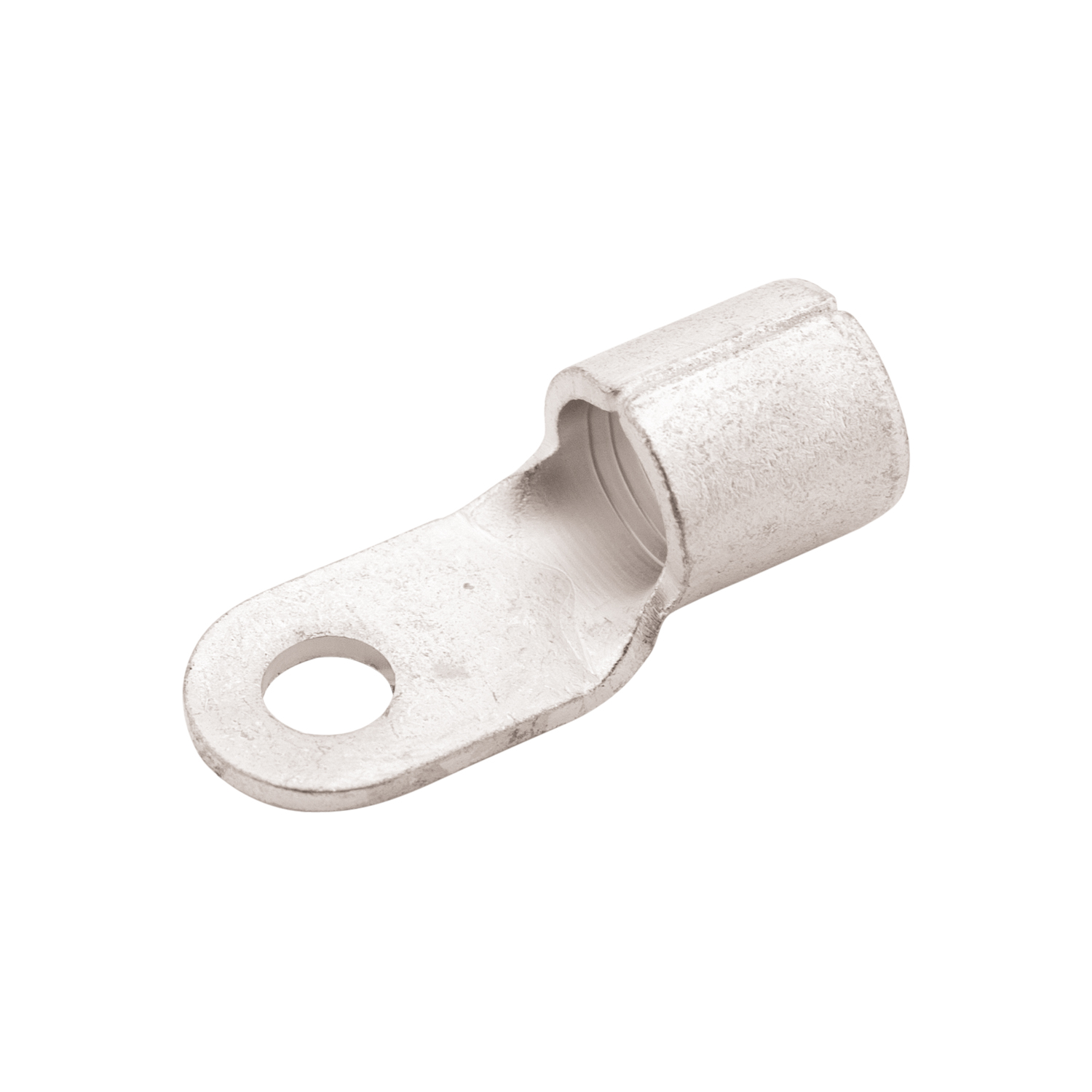

Solderless Terminal ringtype, tin-plated A 8 - 25 300 pcs.

Solderless Terminal ringtype, tin-plated A 8 - 25 300 pcs.

Art.no.: 01052

Please log in to see prices!

Weight: 2.1 kg

Solderless Terminal ringtype, tin-plated A 8 - 25 300 pcs.

acc. to DIN 46234 and VG 88710 (from 10mm²)
material: E-Cu
surface: tin plated

A [mm]: 11
Nominal cross section [mm²]: > 16 - 25
Nominal size [DIN]: A - 8 - 25
b [mm]: 16
d1 [mm]: 7.5
s [mm]: 1.5
d2 [mm]: 8.4
Material: E - Cu
l [mm]: 25
Weight [kg/1000 pcs.]: 7.5
Manufacturer declaration: Download
