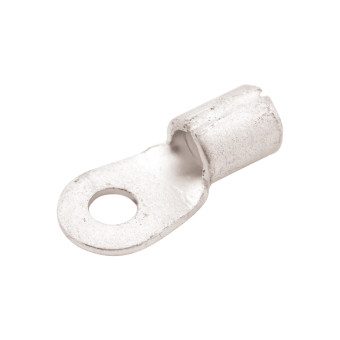

Solderless Terminal ringtype, tin-plated A 5 - 10 1000 pcs.

Solderless Terminal ringtype, tin-plated A 5 - 10 1000 pcs.

Art.no.: 01030

Please log in to see prices!

Weight: 2.25 kg

Solderless Terminal ringtype, tin-plated A 5 - 10 1000 pcs.

acc. to DIN 46234 and VG 88710 (from 10mm²)
material: E-Cu
surface: tin plated

A [mm]: 8
Nominal cross section [mm²]: > 6 - 10
Nominal size [DIN]: A - 5 - 10
b [mm]: 10
d1 [mm]: 4.5
s [mm]: 1.1
d2 [mm]: 5.3
Material: E - Cu
l [mm]: 16
Weight [kg/1000 pcs.]: 2.25
Manufacturer declaration: Download
