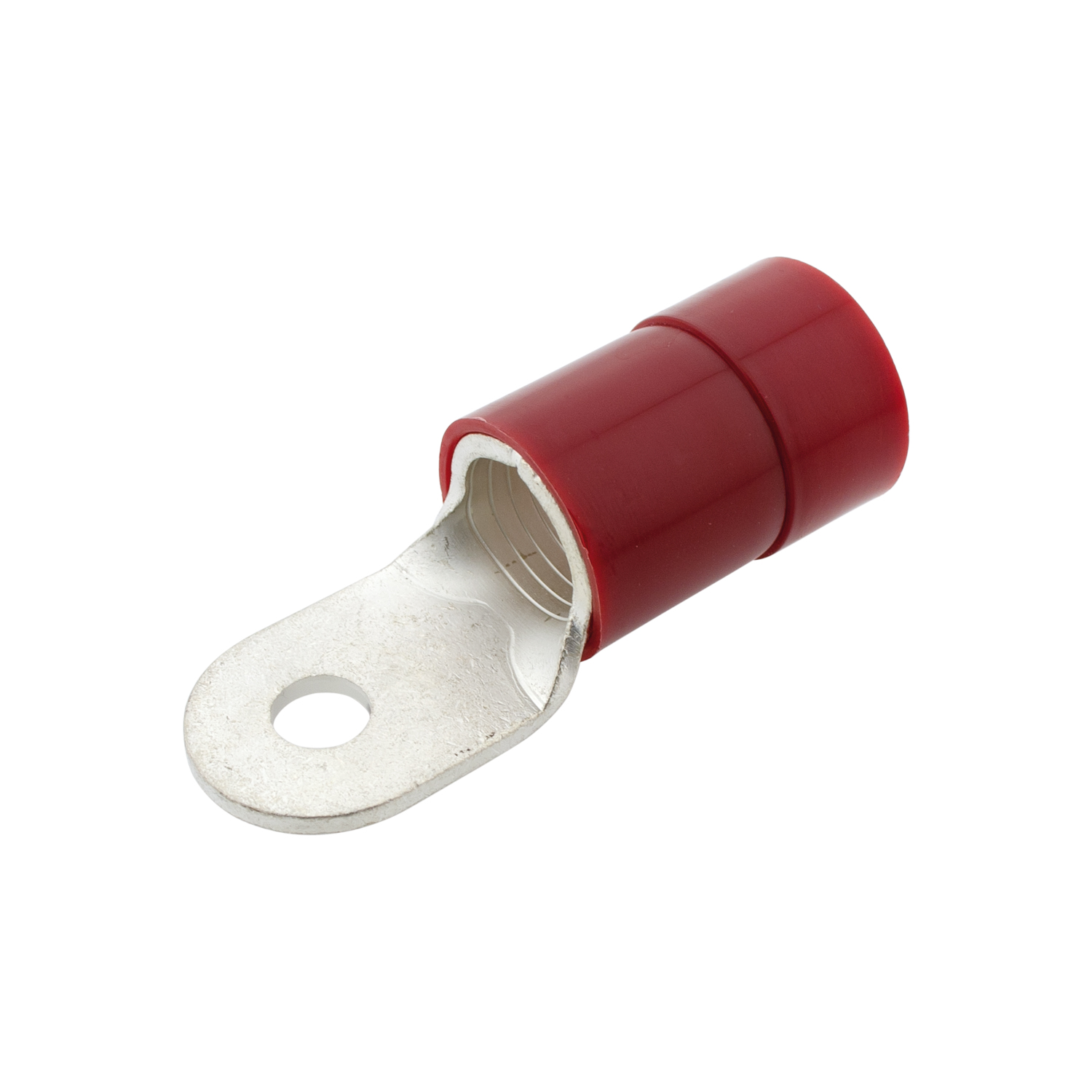

HIL-QUICK® Solderless terminals, ringtype, Polyamide (nylon), A 8 - 85

HIL-QUICK® Solderless terminals, ringtype, Polyamide (nylon), A 8 - 85

Art.no.: 10570 PA
25 piece
Please log in to see prices!
Weight: 0.9725 kg

HIL-QUICK® Solderless terminals, ringtype, Polyamide (nylon), A 8 - 85

  • insulation: polyamide
  • temperature range: -55 °C up to +105 °C
  • zero halogen
Nominal cross section [mm²]
95
Nominal size [DIN]
A - 8 - 95

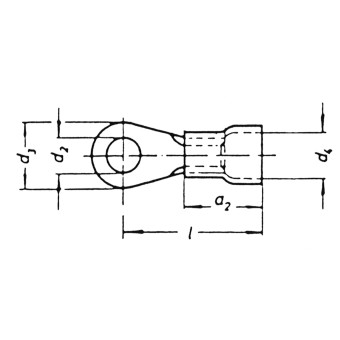

d2 [mm]
8.4
D3 [mm]
24
d4 [mm]
21.7
l [mm]
57.5
a2 [mm]
35.5
Colour
red
Insulation
polyamide (Nylon)
