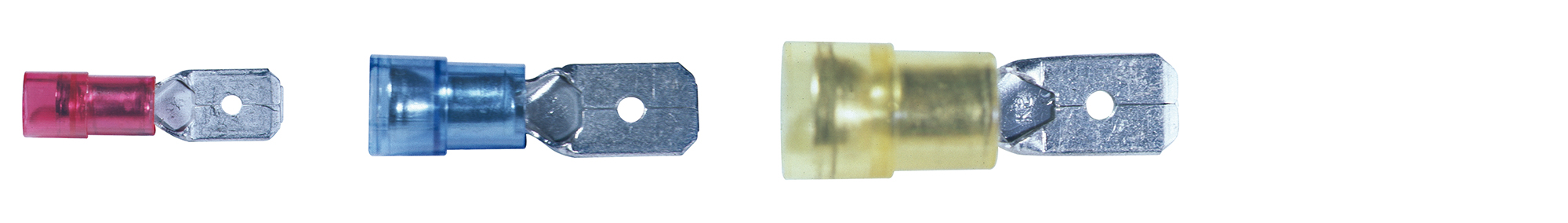

HILPRESS male push on terminals with polycarbonate insulation

HIL-QUICK® flat plugs with polycarbonate insulation

Product description:

  • design: with metallic insulation support
  • insulation: polycarbonate
  • temperature range: -100 °C up to +125 °C
  • zero halogen
Artikel no Colour Nominal cross section [mm²] Terminal Thickness [mm] Terminal Width [mm]
Quantity

PU
10330 HQred 0.5 - 1.5 0.82.8
x
10331 HQred 0.5 - 1.5 0.54.8
x
10332 HQred 0.5 - 1.5 0.84.8
x
10333 HQblue > 1 - 2.5 0.54.8
x
10334 HQblue > 1 - 2.5 0.84.8
x
10340 HQred 0.5 - 1.5 0.86.3
x
10345 HQblue > 1 - 2.5 0.86.3
x
10350 HQyellow > 2.5 - 6 0.86.3
x
