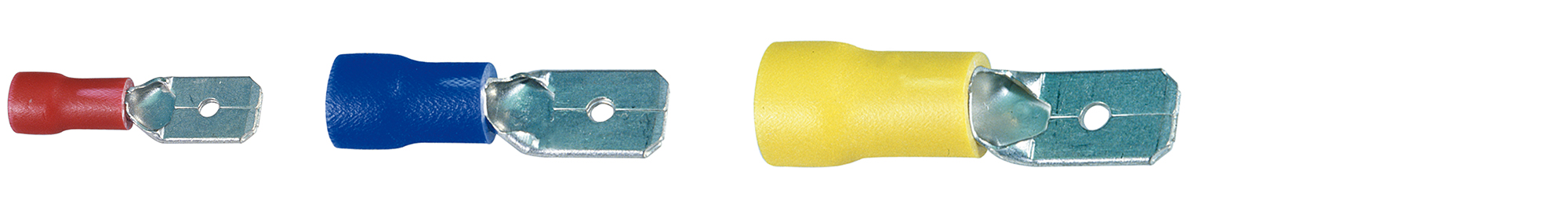

HIL-QUICK® flat plugs with PVC insulation
Product description:
- double crimp
- insulation: PVC
- temperature: -10 °C up to +70 °C
Artikel no | Colour | Nominal cross section [mm²] | Nominal size [mm²] | Terminal Thickness [mm] | Terminal Width [mm] | Quantity |
---|---|---|---|---|---|---|
10330 GH | red | 0.5 - 1.5 | 1 | 0.8 | 2.8 | |
10331 GH | red | 0.5 - 1.5 | 1 | 0.5 | 4.8 | |
10332 GH | red | 0.5 - 1.5 | 1 | 0.8 | 4.8 | |
10333 GH | blue | > 1 - 2.5 | 2.5 | 0.5 | 4.8 | |
10334 GH | blue | > 1 - 2.5 | 2.5 | 0.8 | 4.8 | |
10340 GH | red | 0.5 - 1.5 | 1 | 0.8 | 6.3 | |
10345 GH | blue | > 1 - 2.5 | 2.5 | 0.8 | 6.3 | |
10350 GH | yellow | > 2.5 - 6 | 6 | 0.8 | 6.3 |
